Standard Features Build Spec 775SC
🔧 Construction & Hull
• Fully welded checker plate decking – pressure tested, easy to clean

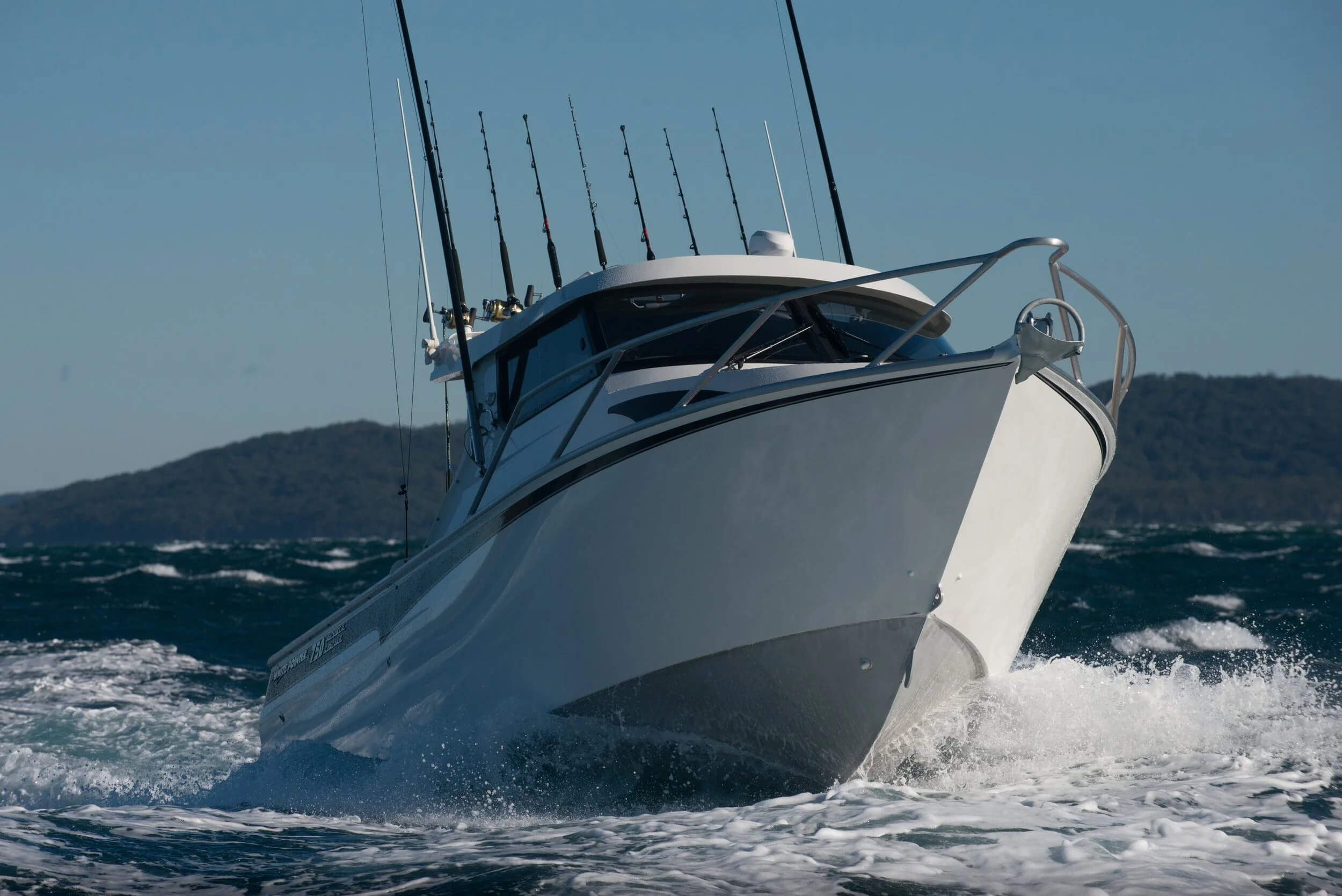

• Reverse chined (gull wing) non-pounding hull design – fully framed and plated
• Commercially proven hull concept
⚙️ Engine
• Mercury Verado V8 XXL 250HP (30" shaft)
• Digital throttle shift
• VesselView 502 gauge
• Electric steering
• Stainless steel propeller
📡 Electronics
• Simrad NSS16 EVO3S flush-mounted 16" MFD
• NMEA 2000 network with cabling kit
• CHIRP transducer – Simrad XSONIC TM 275LH-W (transom mounted)
• GME VHF radio (overhead console mounted with aerial + heavy-duty bracket)
• Fusion MS RA770 Apollo stereo (4x 4” speakers – 2 in wheelhouse, 2 in cockpit)
⚓ Bow Features
• Large anchor well with drains
• “T” bollard at bow
• Bow sprit with roller and rope guide
• Flat foredeck – ideal work platform
• Full bow railing
• Tow eye
• Stressfree NG Maxi Freefall winch (1400W motor, 100m braid, 15m chain, 300m drum capacity)
🛏️ Cuddy Cabin
• Removable rear dash cover to protect wiring
• Watertight hatch in cuddy roof
• LED cabin lighting
• Dual-level shelving
• Under-squab storage
• Electric flush toilet in vee berth with seacock inlet
• Carpet-lined ceiling & side walls
• Vee berth squabs
• ¼ light shark fin windows

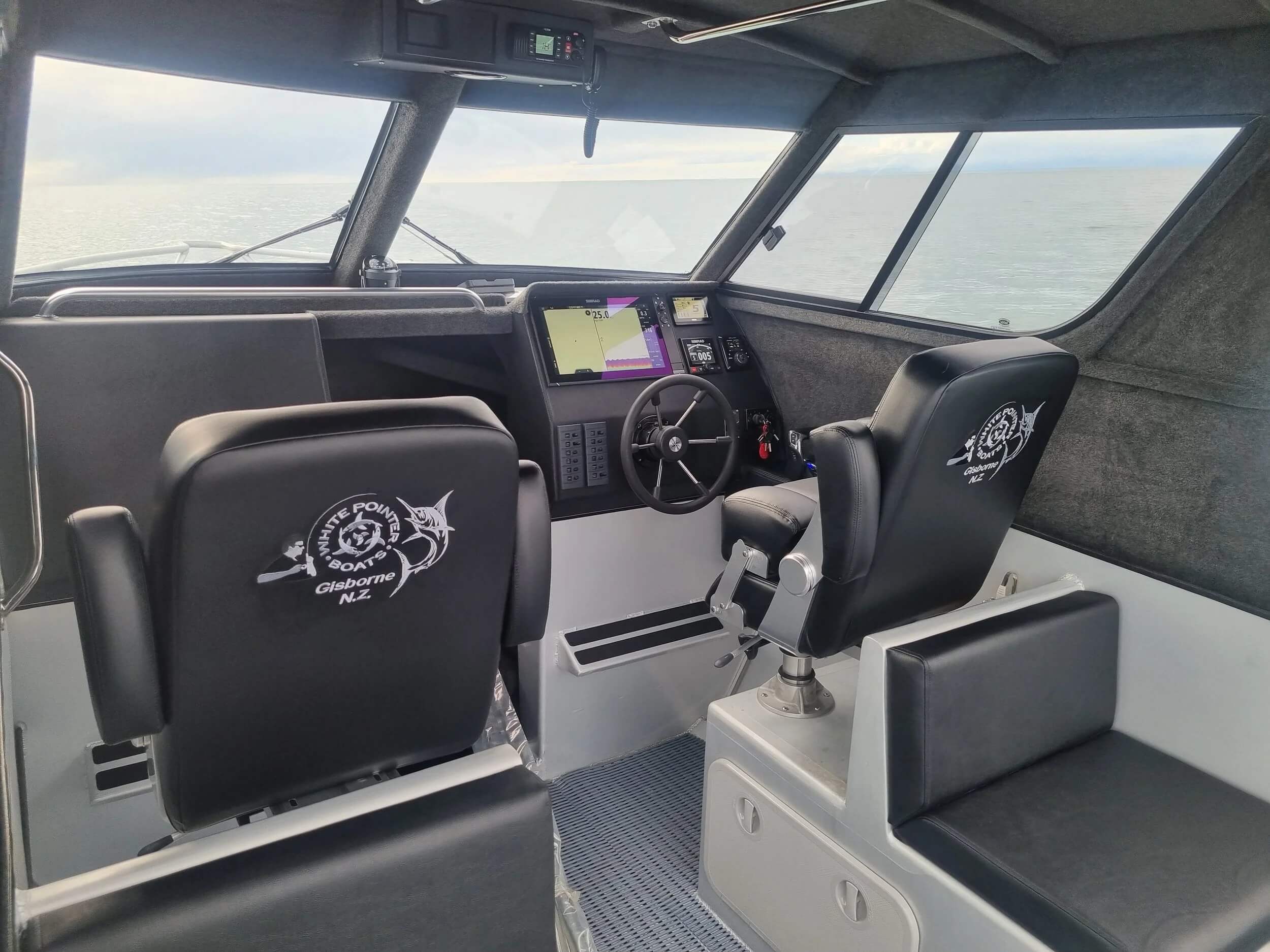

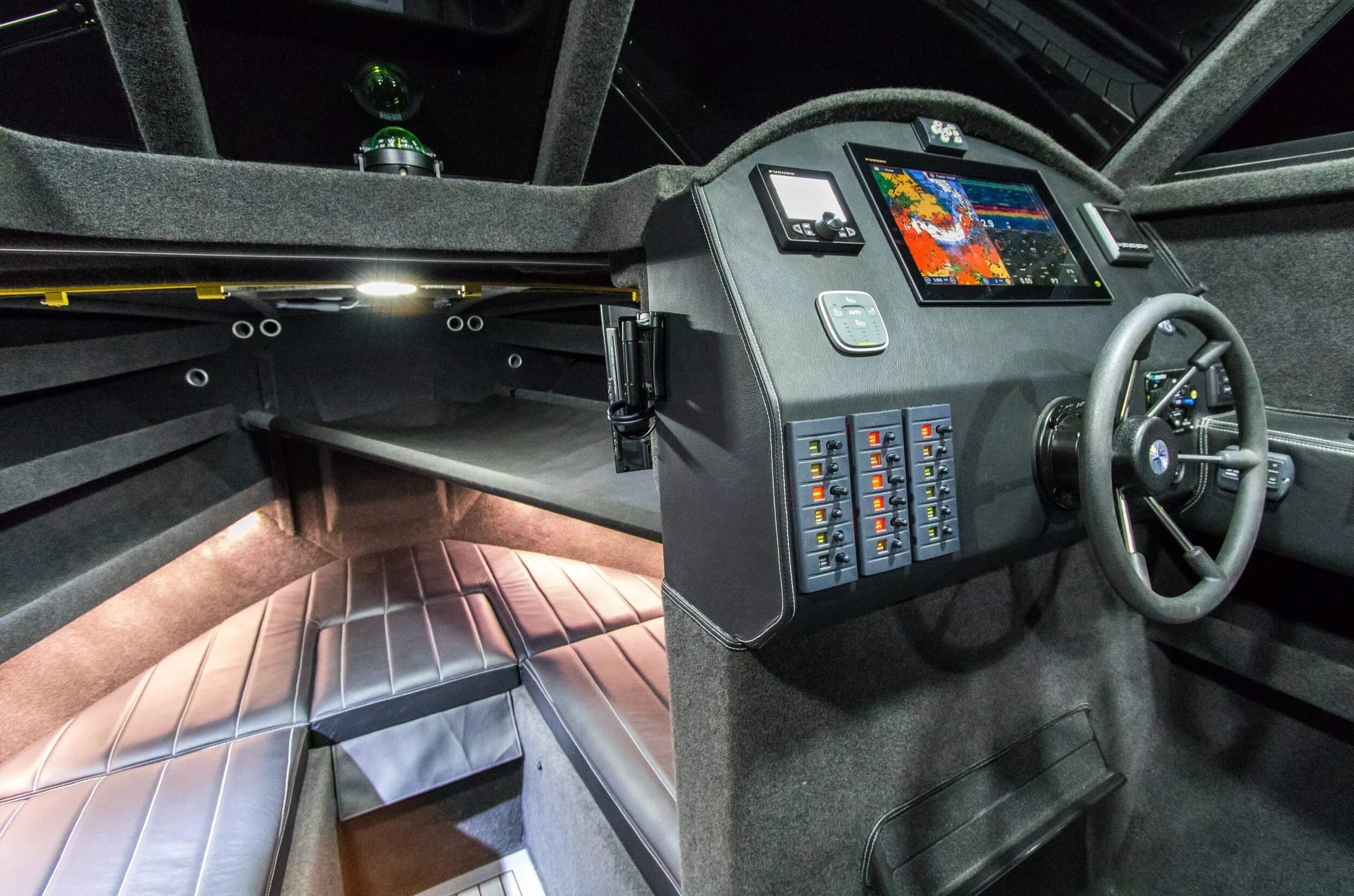

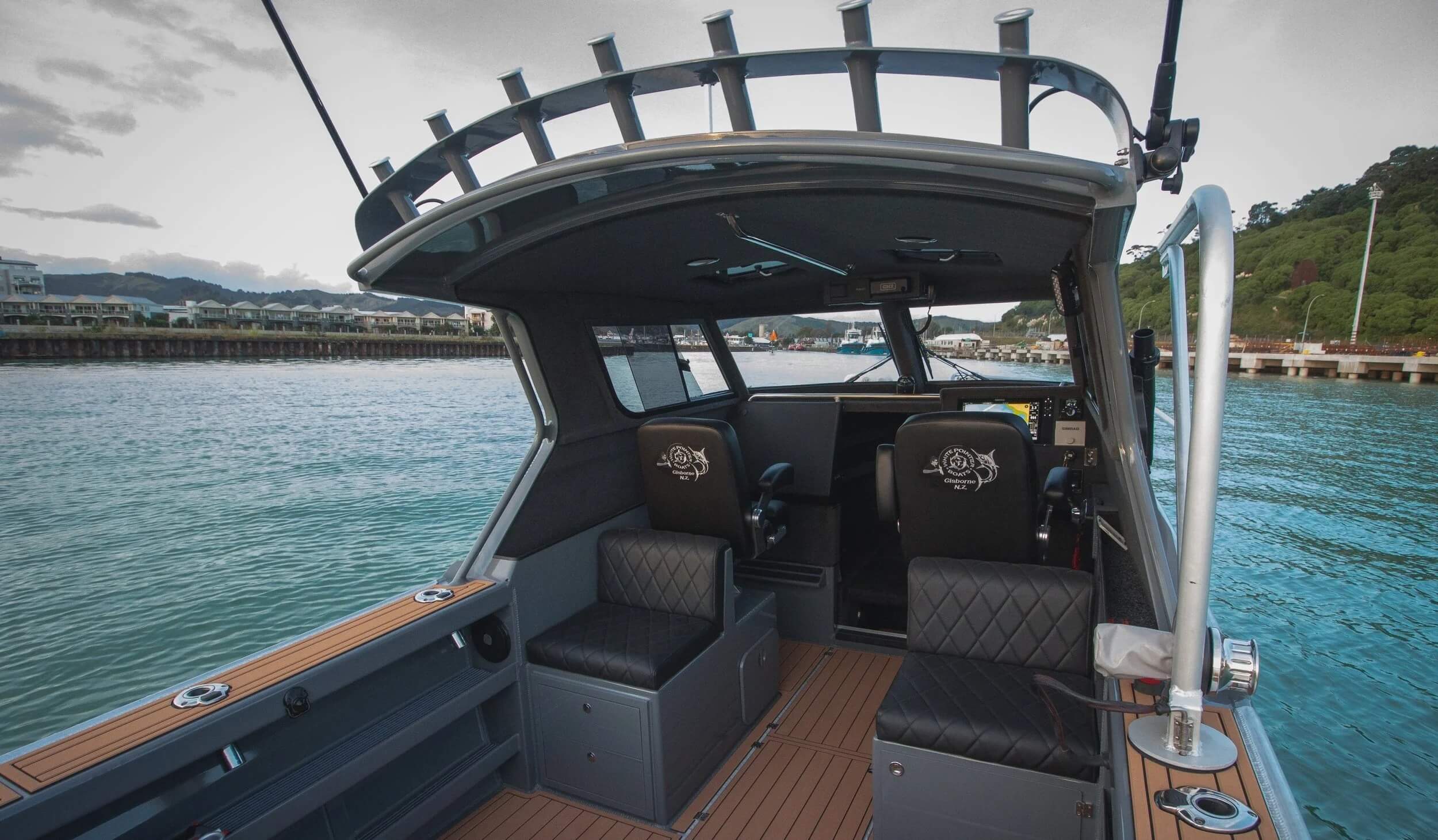

🧭 Wheelhouse
• Comfortable driving position (sitting or standing)
• Compass (back-wired to nav switch)
• King/Queen custom seating (bucket seats with sliders, armrests, storage hatches)
• Upholstered dash and overhead radio console
• Full-width dash (flush-mount capable with raised lip)
• Grab rails: ceiling, fishtail end, both roof sides
• Full-height helm station
• Insulated ceiling (polystyrene + ply under carpet)
• LED navigation and anchor lights
• Red/white LED cabin light
• Console for VHF & stereo
• 6-rod rocket launcher
• Sliding side windows
• Underdeck storage compartment (hinged alloy lid)
• Top-mount throttle housing (upholstered to match dash)
• One-piece curved 6mm toughened glass windscreen
• Pantograph wipers (port & starboard) with washer system
• Dual 6-switch panel with easy-access fuses

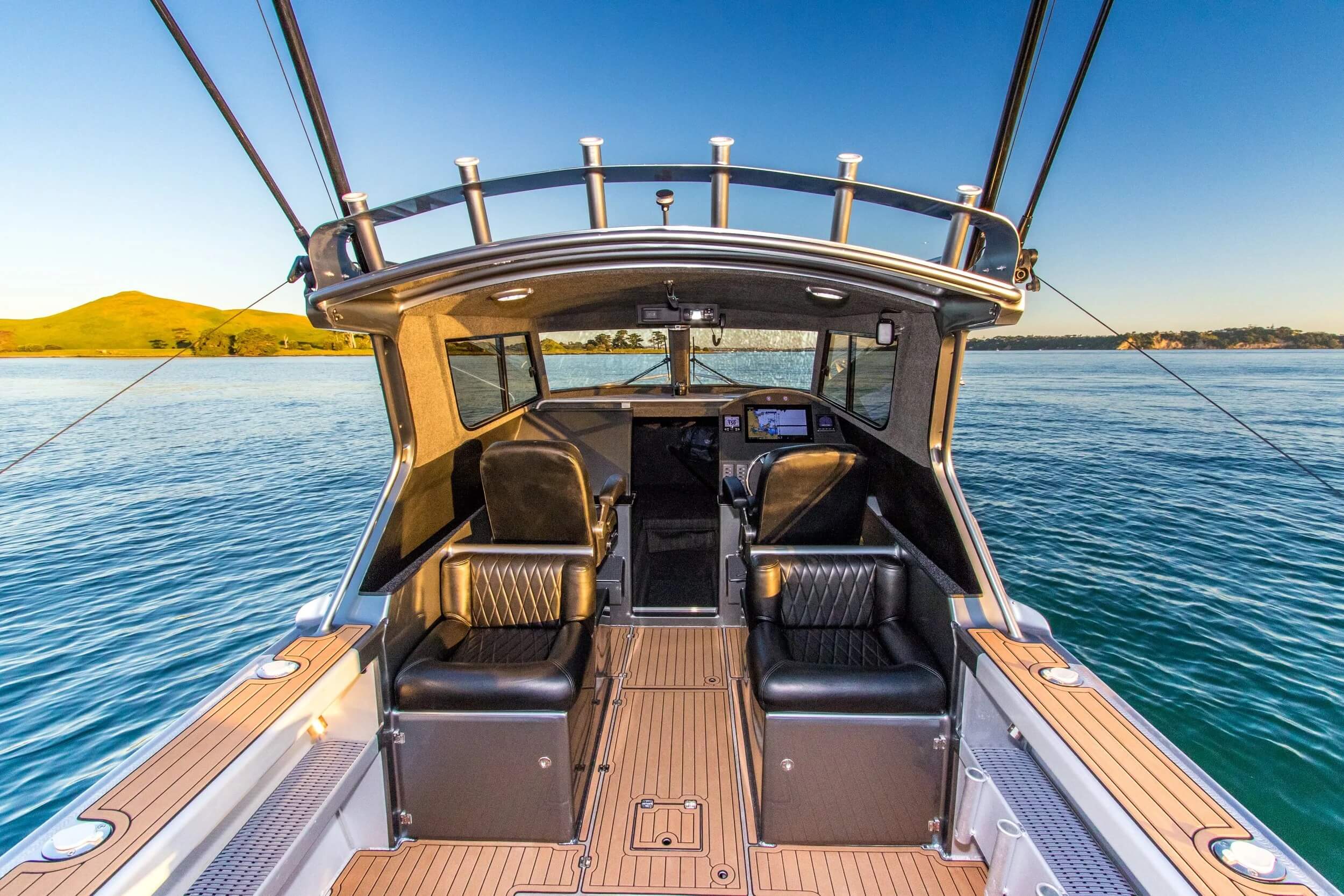

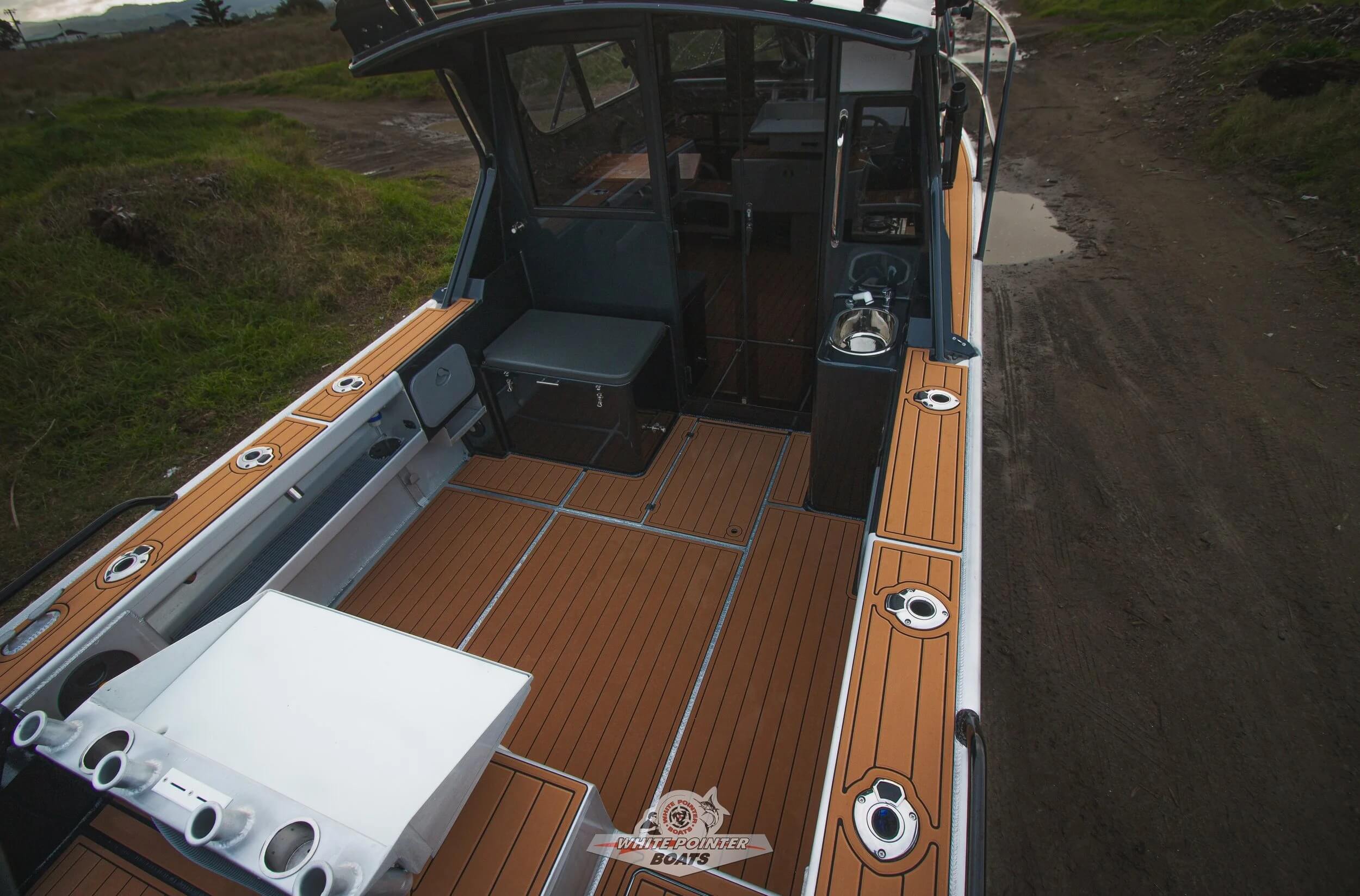

🎣 Cockpit
• Twin battery compartments with large access hatches
• Built-in buoyancy
• Saltwater deck wash (pump, hose, dash switch)
• 300L in-floor fuel tank
• LED cockpit spotlights
• 6x stainless steel rod holders
• Kill/storage tank with liner and alloy lid
• Paddle & gaff hook compartment
• Large aft side storage shelves
• Bilge pump with float switch and 3-way dash control
• Sump for water/waste collection
• Free-draining deck scuppers

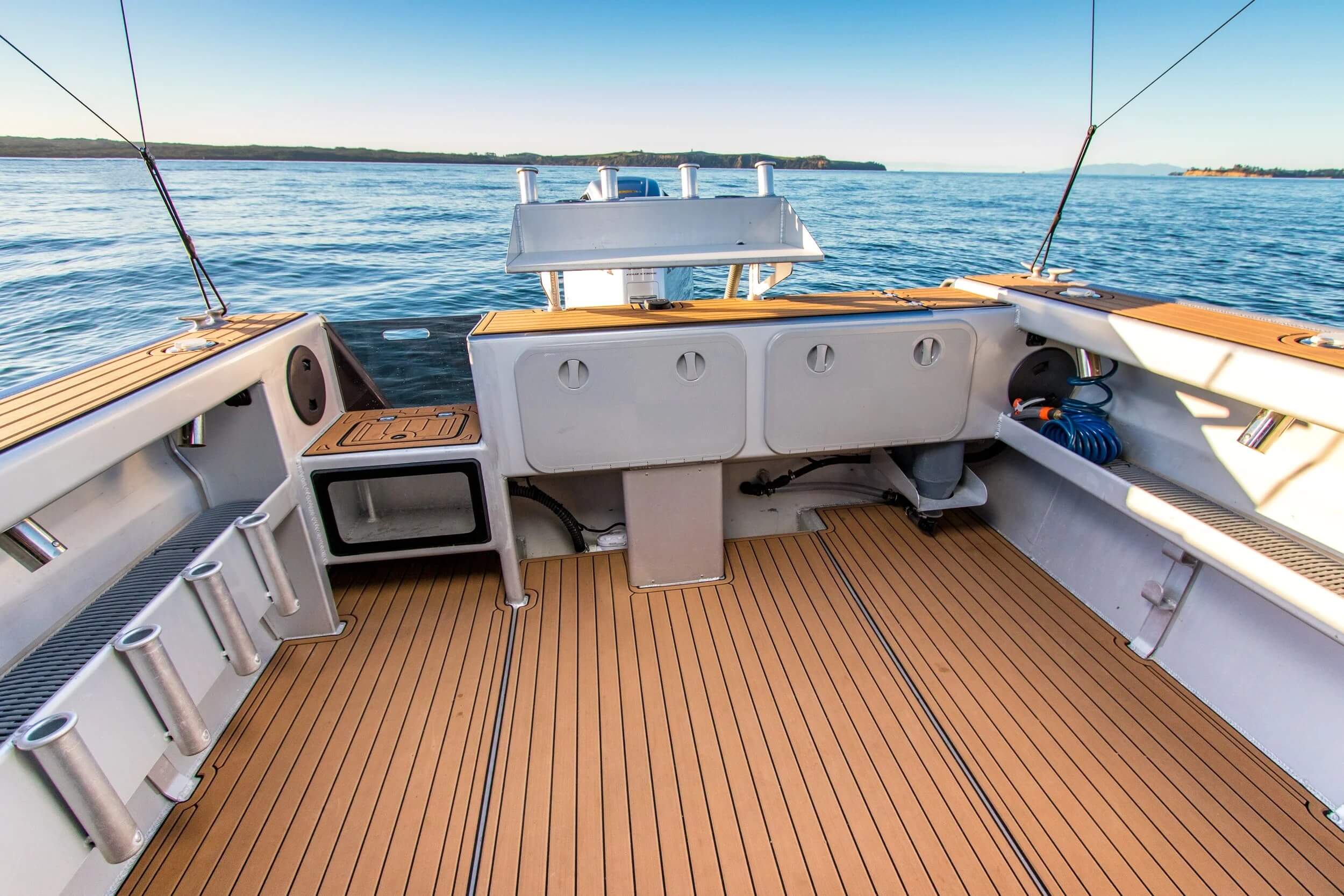

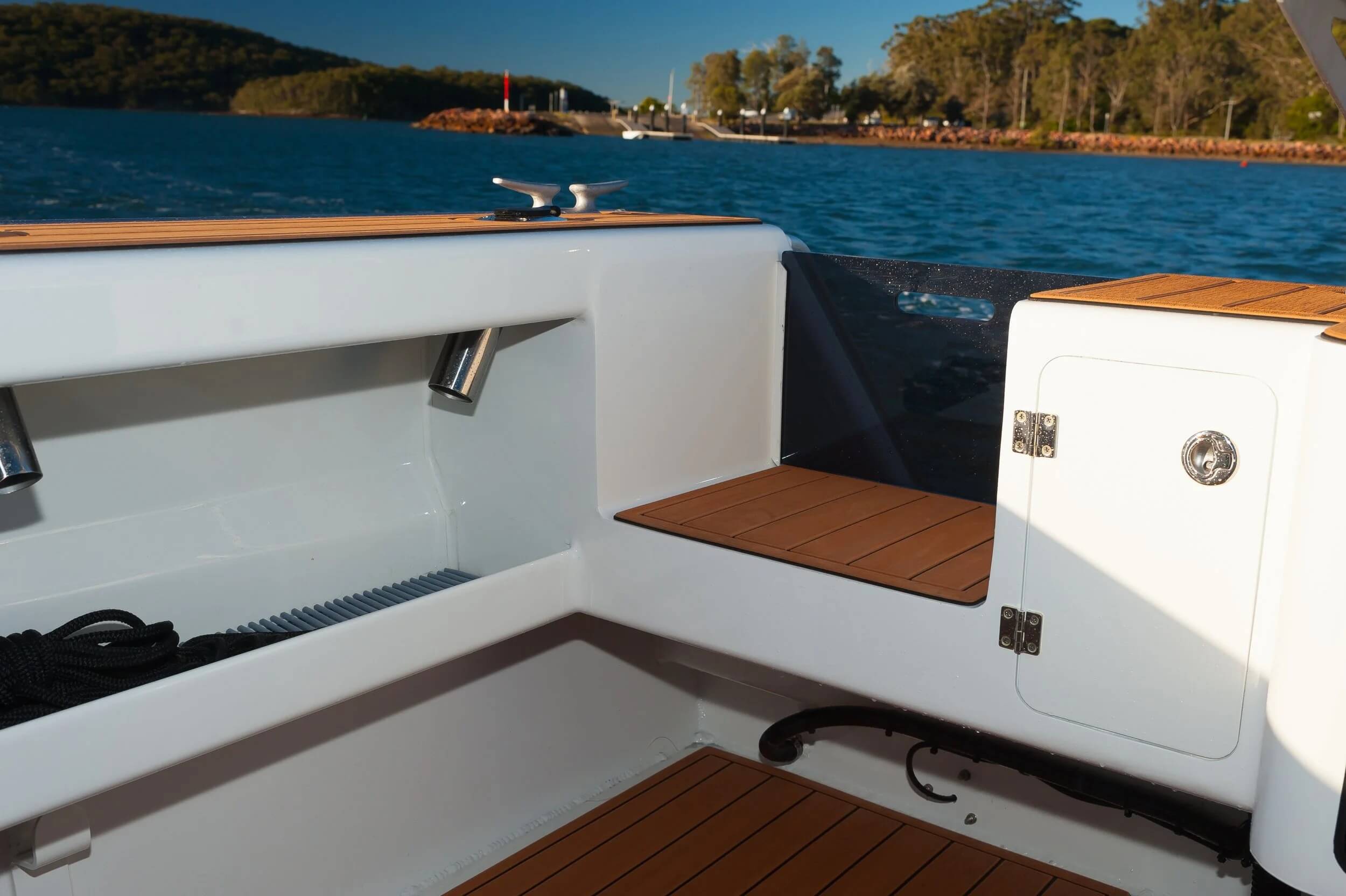

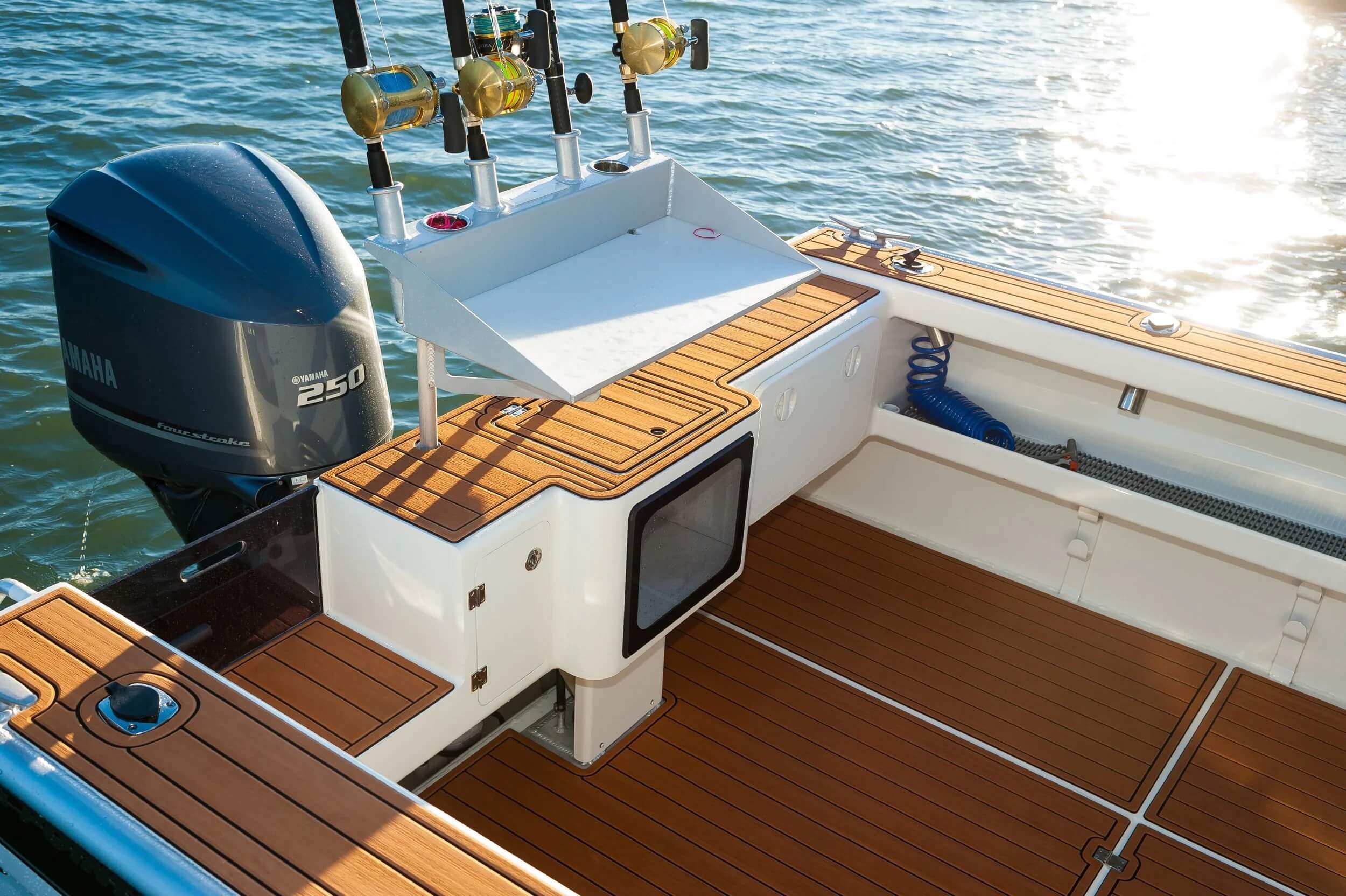

🐟 Transom
• 750mm removable bait station (4 rod holders, knife/can holders, cutting board)
• Two-step flat-folding boarding ladder (starboard)
• Full-width bat-wing boarding platform
• Mid-transom alloy cleats
• Grab rails on Portofino transom
• Live bait tank (TV-style window, top hatch access, pump fed)
• Modern fast-back transom profile
• Single outboard pod (30” shaft)
• Mounting plates for transducer and trim tabs
• Twin battery system with master, house, and start switches (batteries not included)
• Starboard transom walk-through with in-fill slider
🎨 Coatings & Finish
• Painted wheelhouse, hood, hull sides, and transom
• Acid-washed and Nyalic-coated cockpit, dash base, seat bases, bow rails, fish bins, lockers
• Custom graphics and decals
• Optional metallic, pearl, or black paint upgrade

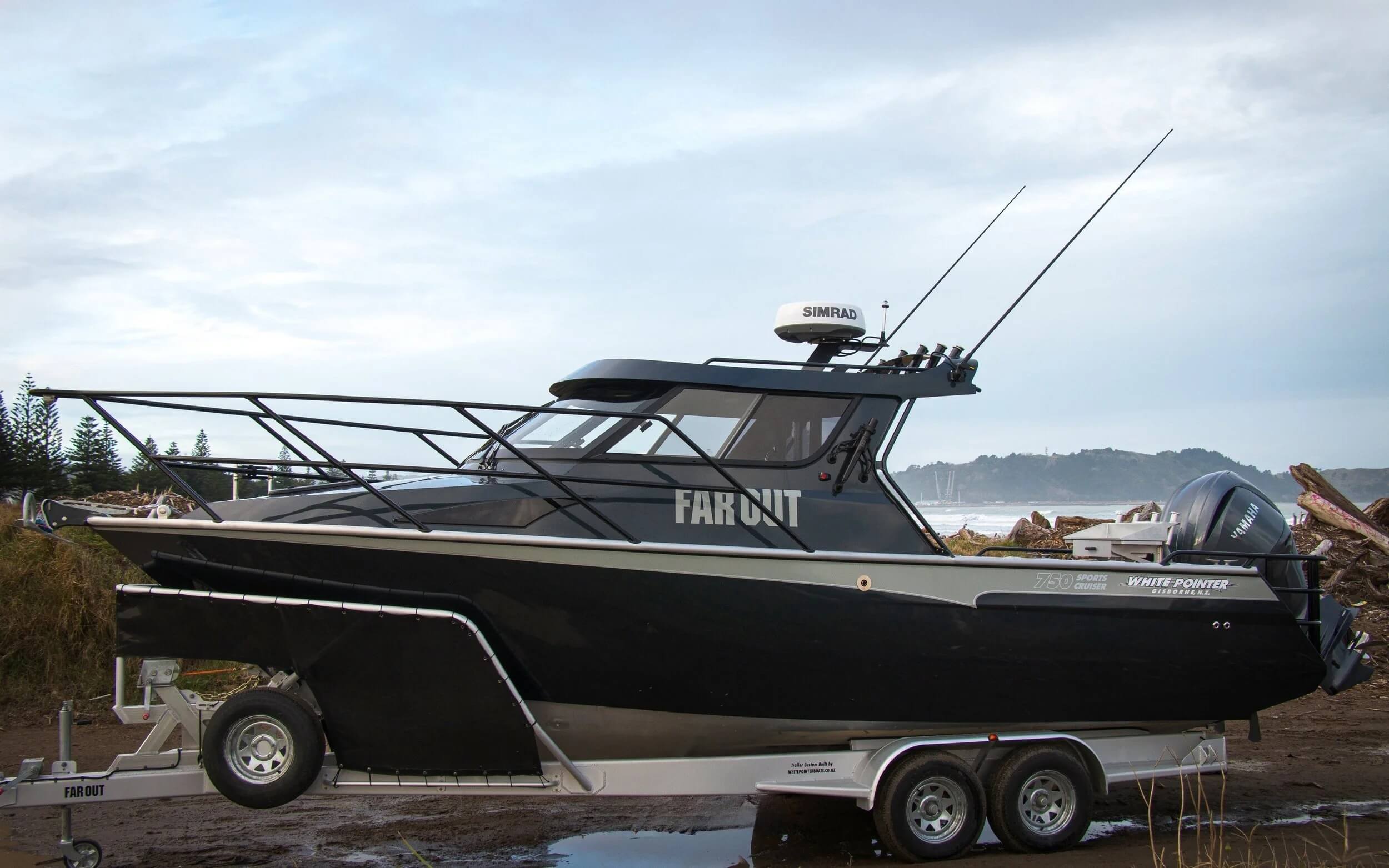

🚚 Trailer
• Custom 775 alloy trailer – twin axle, centre rollers, cradle design
• High-lift jockey wheel
• Submersible LED lighting
• Nyalic-coated frame
• Credo stainless electric brakes – 12V with cab control and park brake
• Spare wheel with mount
• Snub catch system
• Tie-down straps, lights, flag bag
• ADR compliant – Australian spec with dual braked axles
