Standard Features Build Spec for 745 SC
🔧 Construction & Hull
• Fully welded checker plate decking – pressure tested
• Reverse chined (gull wing) non-pounding hull
• Fully framed and plated design – commercially proven
⚙️ Engine
• Mercury Verado V8 XL 250HP (25" shaft)
• Digital throttle shift & electric steering
• VesselView 502 gauge
• Stainless steel propeller
📡 Electronics

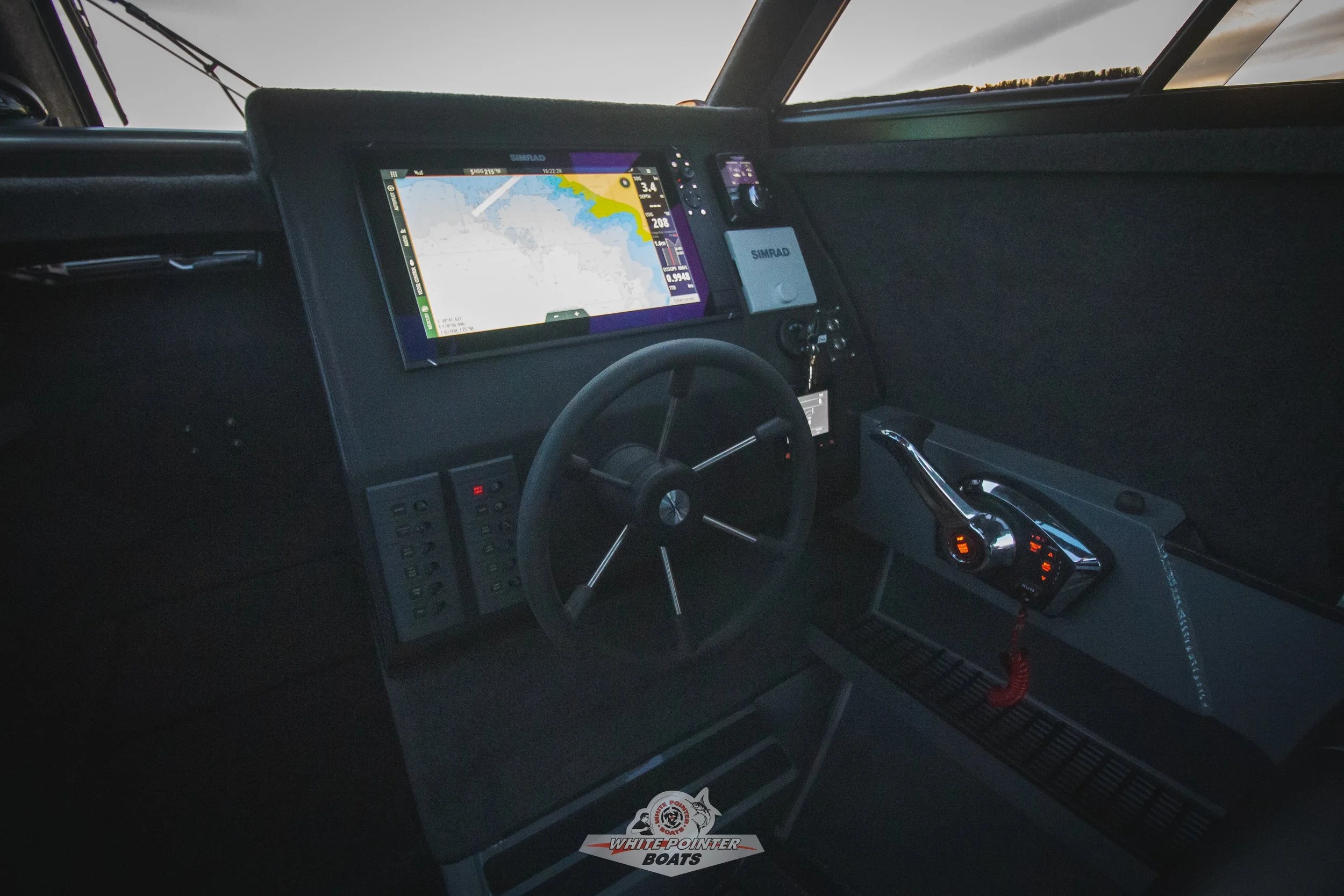

• Simrad NSS16 EVO3S flush-mounted 16" MFD
• Full NMEA 2000 networking, VSSLNK kit & CHIRP transducer
• GME VHF radio with bracket & aerial
• Fusion MS RA770 Apollo stereo with 4 speakers (2 wheelhouse, 2 cockpit)
⚓ Bow Features
• Large anchor well with drains
• “T” bollard and bow sprit with roller
• Full bow railing and flat foredeck work area
• Viper S Series Gravity Feed 1000 winch with 100m braid, 12m chain, 15lb Manson anchor

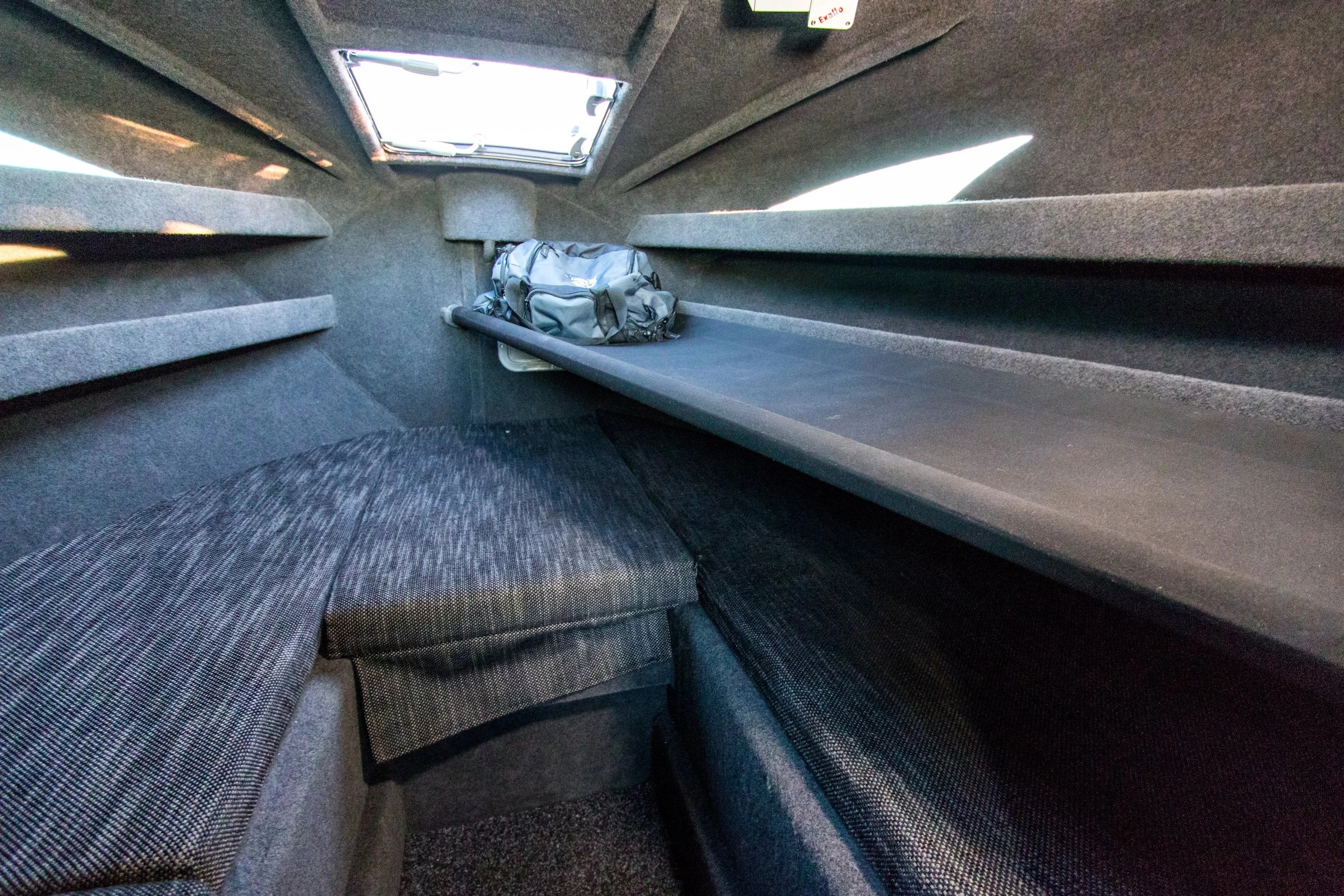

🛏️ Cuddy Cabin
• Removable dash rear cover
• Watertight hatch in cabin roof
• LED lighting in cuddy
• Dual-level shelves and under-squab storage
• Electric flush toilet in V-berth with seacock inlet
• Carpet-lined ceiling and sidewalls
• Upholstered V-berth squabs
• Shark fin ¼ light cabin windows

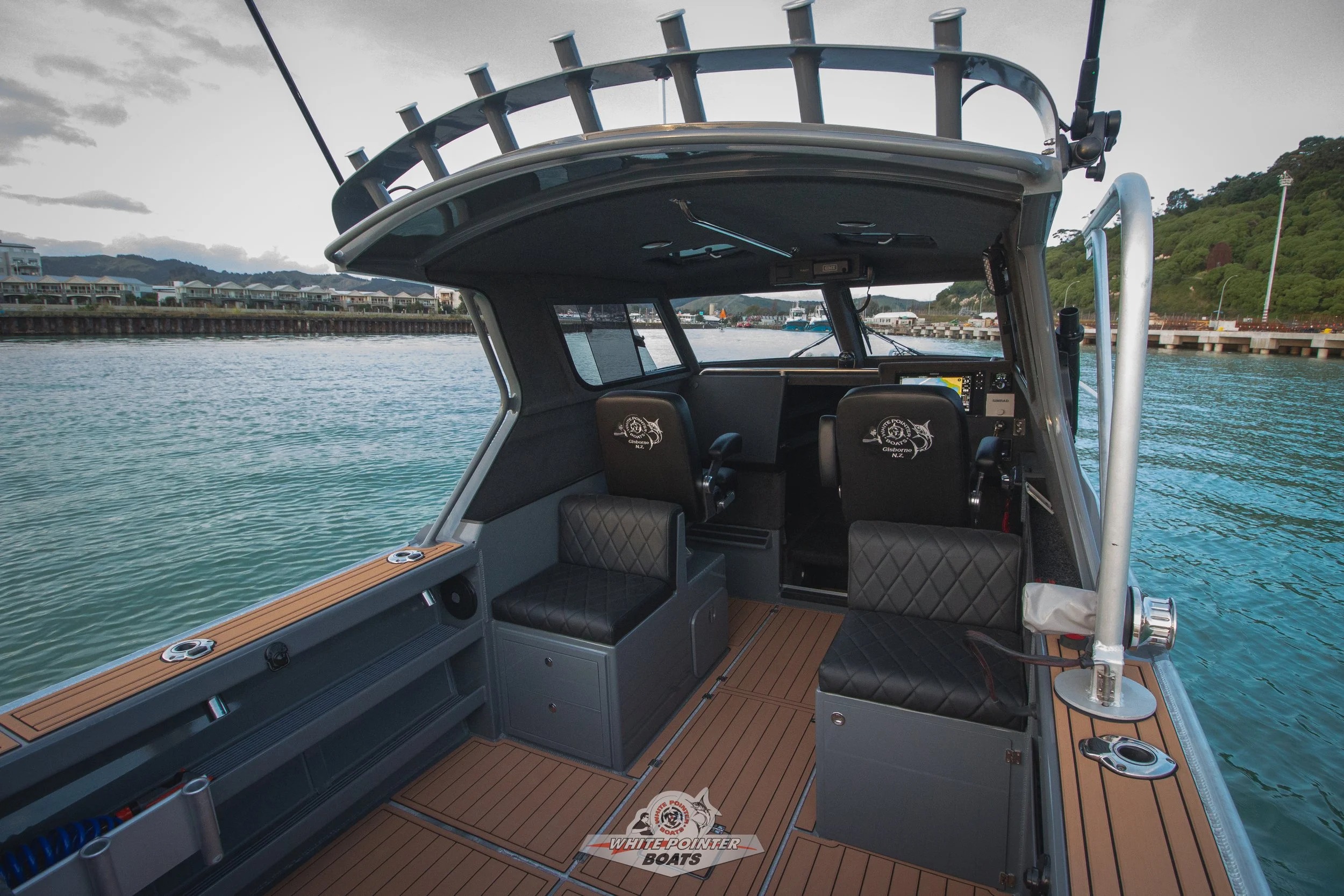

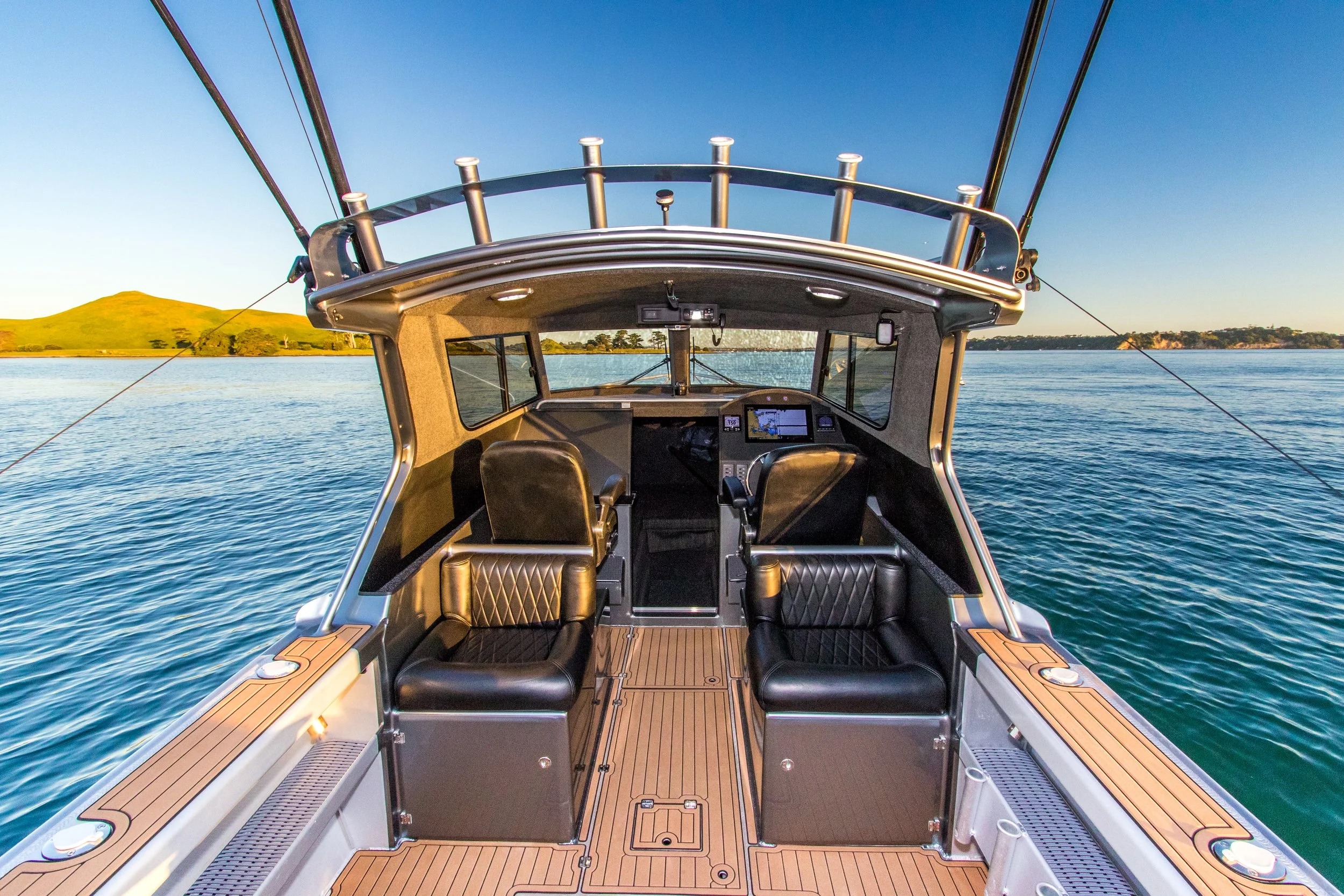

🧭 Wheelhouse

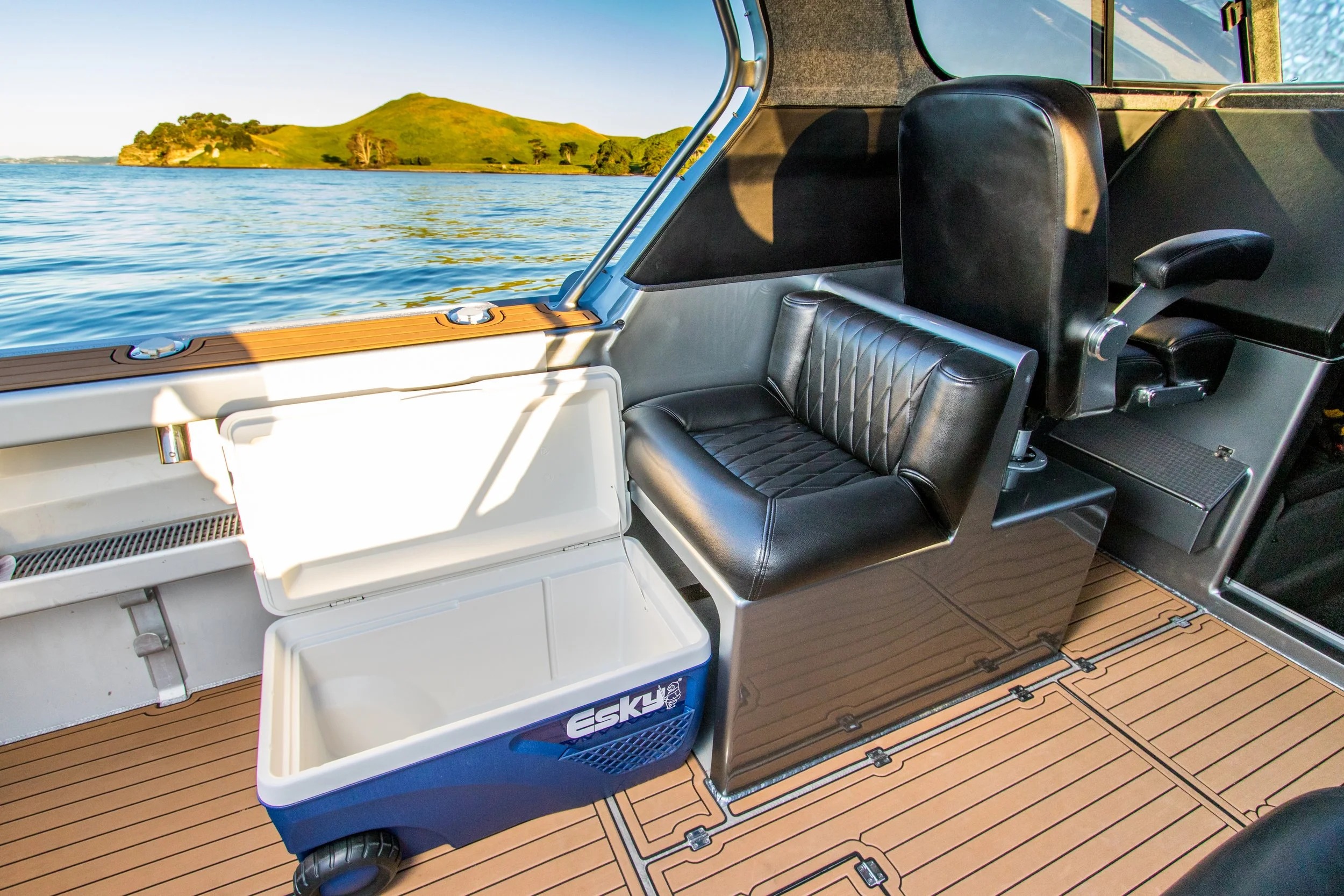

• King/Queen custom seating with storage & bolstered bucket seats
• Full-width flush-mount dash with rim and grab rail
• Insulated ceiling (ply + carpet)
• Red/white LED lighting and nav lights
• Sliding side windows
• Rocket launcher (6 rod holders)
• Marine carpet and vinyl-lined dash, ceiling, and walls
• Dual six-switch panel with accessible fuses
• One-piece curved 6mm toughened front glass
• Port & starboard wipers with washer system
• VHF/stereo radio dash console
• 12V DC/USB socket on dash
🎣 Cockpit
• Battery storage with large access hatches
• Saltwater deck wash system with dash switch
• 300L in-floor fuel tank
• 6 x heavy-duty stainless rod holders
• Storage/kill tank with liner & hinged alloy lid
• Paddle & gaff hook storage
• Large aft side storage shelf
• Bilge pump with float & 3-way switch
• Water/waste sump with drainage
• Free-draining deck scuppers
🐟 Transom
• 750mm removable bait station (4 rod holders, knife/can holders, cutting board)
• Two-step flat-folding boarding ladder (starboard)
• Full-width boarding platform
• Portofino alloy cleats & grab rails
• Live bait tank (Fish TV-style) with top hatch and pump
• Modern fast-back transom design
• Single 25" shaft outboard pod
• Transducer & trim tab mounting plates
• Twin battery system with house/start master switching and emergency parallel (batteries not included)
• Walk-through transom with infill slider
🎨 Coatings & Finish
• Painted in solid white (hull, hood, wheelhouse)
• Acid washed + Nyalic-coated cockpit, anchor well, bins, lockers, bow rails, under transom
• Decal graphics included
• Optional metallic, pearl, or black paints
🚚 Trailer
• ADR-compliant dual axle trailer
• Credo 12V stainless steel electric brakes with cab control unit - OPTIONAL
• Snub catch system
• Spare wheel and trailer mount
• Tie-down straps with flag bag and lights
• 745 Custom Alloy Trailer
• Twin axle with easy-load cradle and centre rollers
• Submersible LED lights
• High-lift jockey wheel
• Nyalic coated
• Boat name on trailer
