Stabicraft 2500 Ultracab XL


$0.00
* Sail Away

The 2500 Ultracab is an innovative approach to the forward raking windscreens commonly found on traditional Pilothouse models. The 2500 Ultracab incorporates a unique aesthetic that is unmistakably Stabicraft whilst housing multiple interior design innovations to suit multiple boating platforms.

Boat Details
  • Make: Stabicraft
  • Name: 2500 Ultracab XL
  • Model Number: 2500 Ultracab XL
  • Year: 2025
  • Length: 7.62 metres
  • Width: 2.54 metres
  • Dry Weight: 1753 kg
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 9
  • Boat Usage: Fishing
  • Steering: Side Console
  • Warranty: Contact Dealer

The 2500 Ultracab is an innovative approach to the forward raking windscreens commonly found on traditional Pilothouse models. The 2500 Ultracab incorporates a unique aesthetic that is unmistakably Stabicraft whilst housing multiple interior design innovations to suit multiple boating platforms.

Hull Length 7.62m (25.0ft) Beam Width 2.54mm* (100in*)
Boat Height Min/Max 2.57m (101.1in) Dry Hull Weight 1753kg (3865lb)
Maximum Persons 9 Maximum HP Limit 400hp
Min Recommended HP 300 Motor Leg Length 25/30/25 Trimount
Max Aux Motor HP 25 Internal Beam 1.97mm (77.7in)
Internal Gunnel Height AFT 826mm (32.5in) Outside Chine Width 2.31m (90.9in)
Deadrise AFT 19° Life Ring Thickness 4mm + 4mm (0.16in + 0.16in)
Hull Thickness 6mm (0.24in) Fuel Tank Capacity 378L (100gal)
Total Sealed Chamber Volume 2096L (74.0ft³) Life Ring Chamber Volume 1361L (48.1ft³)
NZ CPC boat safety standards ✔ US Coastguard boat safety standards ✔
ABP boat safety standards ✔

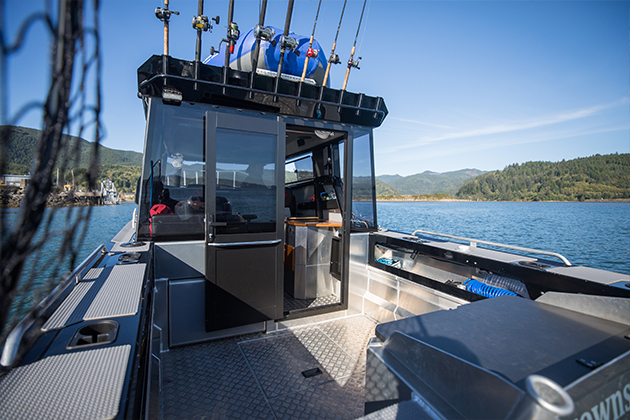

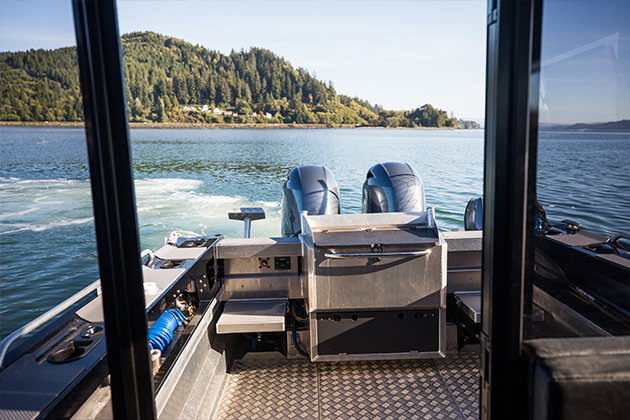

The rear cabin lockable door and huge glass panels make for a secure and great viewing experience
Lockable rear cabin bulkhead

The ‘XL’ is a denomination added to the smaller cabin version in the 2500 Ultracab®. It effectively creates a longer cabin through huge glass panels and rear bulkhead lockable door. The view either from the cabin or from the deck is largely uninterrupted and, with the door open, creates a great ‘flow’ to and from either space.

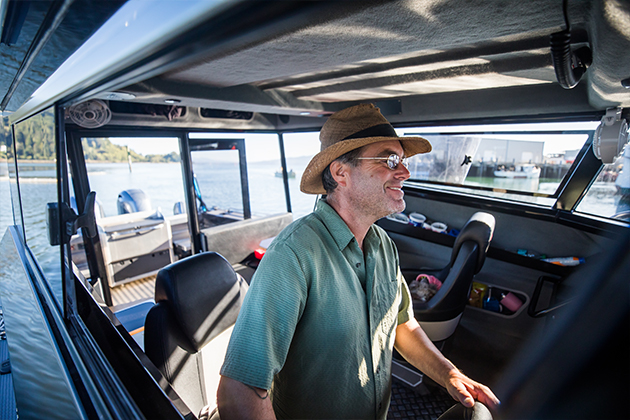

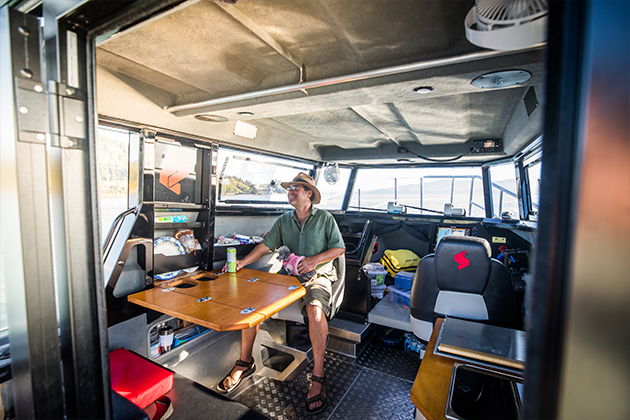

Seating for 6 and convenient dining through a clever fold down table
Cabin seating and table

The 2500 Ultracab® XL has seating for 6 with 2 x Elite Bolster helm and passenger seats, 2 x fold-down troop style seats and a port seat box for 2 people. A port-side drop-down table folds out from the cabin wall revealing a neat storage area for condiments and usable dining space complete with cupholders.

Shock mitigating Airwave pedestals make for a more comfortable ride
Elite Bolster seats on Airwaves

The Elite Bolster seats ca be found across the Stabicraft® range however on the 2500 Ultracab XL these are supported by a shock mitigating Airwave pedestal. The Airwave is a very compact, adjustable air pressured pedestal making the ride on the 2500 Ultracab® XL more comfortable again.
