Formosa 2024 Vision Cab


$96,800.00
* On Water

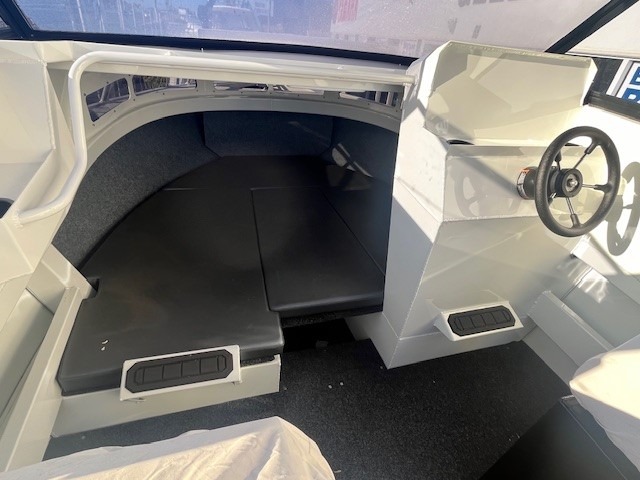

There is no fun in being stuck in an uninviting dark cabin and competing with the family for deck space. The VISION Cab was designed to give the whole family an open-plan cabin with plenty of room to move. Formosa’s wide hull means you get a large light-filled cabin with longer cushioned bunks and great storage areas, plus a stable and spacious deck out the back for all. Enjoy an overnight stay at your favourite spot with this model. The driver and passenger sit comfortably with individual dash storage behind Formosa’s heavy-duty Offshore Windscreen while underway, and you gain access to the anchor well with this model through a large cabin roof hatch.

Boat Details
  • Make: Formosa
  • Name: Vision Cab
  • Model Number: 565
  • Price:
    $96,800.00
  • Year: 2024
  • Length: 5.65 metres
  • Width: 2.5 metres
  • Hull Material: Plate Aluminium
  • Hull Type: V-Hull
  • Passenger Capacity: 5
  • Boat Usage: N/A
  • Steering: Hydraulic Steering
  • Warranty: 48 Months
  • Stock Number: FRM565VC
Engine Details
  • Brand: Yamaha
  • Horsepower: 130
  • Fuel Capacity: 150
  • Drive Type: Outboard
  • Steering: Hydraulic

Enjoy the comfort of two (2) embroidered, high back, contoured Bolster Seats mounted on Air Ride adjustable pedestals gives you more comfort underway or upgrade to PRO DECK™ for aluminium seat boxes for extra storage. Formosa boats are known for their stability, yet the Quad4™ Water Ballast option is available on each boat if more stability at rest is needed. Standard features on a Centre Cabin include an Electric Motor Mount, a large aluminium bowroller, 32mm handrails, Tow-Catch™ Trailer capability, heavy-duty dive ladder, quality steering, moulded fuel tank and sender with filter, automatic bilge pump, transom deck tread, foam-filled hull, electrical harness kit, 2 cleats, forward bollard, aluminium rod holders, white paint and Formosa graphics, plus more. A forward Cabin Seat option out the front can be welded into the cabin – a great place for the kids or casting a rod at your favourite spot.

Scroll through the following table to view information related to all centre cabin models.

565 595 635 675 715 755
Length 5.65m 5.95m 6.35m 6.75m 7.15m 7.55m
Beam 2.45m 2.45m 2.50m 2.50m 2.50m 2.50m
Bottom Sheets 4mm 4mm 5mm 5mm 5mm 5mm
Side Sheets 4mm 4mm 4mm 4mm 4mm 4mm
Internal Freeboard (Floor to Gunnel approx. mm) 660mm 660mm 720mm 720mm 720mm 770mm
Fuel Capacity 150L 200L 220L 220L 220L 300L
Transom Shaft Length ExL/S ExL/S ExL/S ExL/S ExL/S ExL/S
Dry Hull Weight (kg Boat only approx) 820 850 1050 1150 1300 1400
Max Horsepower* 150 175 200 225 250 300
Min Horsepower* (may vary depending on motor brand) 115 130 150 175 200 225
Deadrise (Degrees) 19 19 19 19 19 20
Max Passengers* 6 7 7 7 7 7
FORMOSA SRT PLATE HULL
Formosa SRT is a skilfully engineered and designed plate boat. Formosa has packaged the very best designs from their previous brands, SEA-ROD and Tomahawk, and developed one exceptional hull. The SRT Hull is full of functionality, strength, good looks, safety and value, all key factors to consider when purchasing a boat. Read more about Formosa’s SRT Hull features on the Quality Build page.

PRO DECK™
Select a PRO DECK™ UPGRADE on boat sizes 495 to 635 for Formosa’s Aluminium True Self-draining Deck. Boats 675 and larger come standard with PRO DECK™. Formosa’s PRO DECK™ allows water to drain off the deck and out through the Formosa scupper system. A great option in case of heavy seas, a wave hits or just washing down the deck at home. Choose between PRO DECK™ Carpeted Aluminium floor with marine-grade carpet for cool comfort underfoot, or PRO DECK™ Checker Plate Aluminium Floor. Visit our Safety & Performance page for more on Formosa’s true self-draining decks.

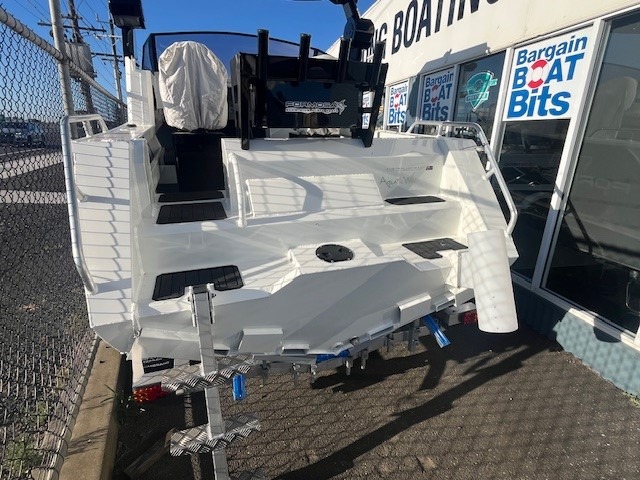

ACTIVE TRANSOM
The innovative step-down ‘Active Transom’ has smart storage solutions, easy on-board battery access and continues to be the best in transom design and water access on the market. With the Active Transom, you can choose from four options, Full Access, Dual Access, Single Access and Closed Access. Full Access and Dual Access are available for 525-635 models only. Single Access is standard on boat models.
